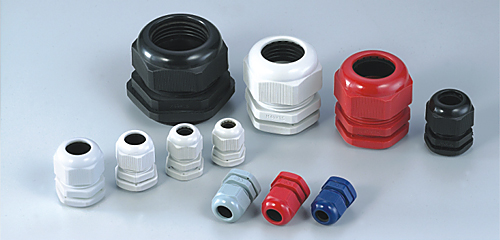

Product Introduction Material: PA (NYLON), UL 94
Hermetic seal: NBR
Working temperature: -40℃ to 100℃ in static state Instantaneous heat resistance up to 120℃,-20℃ to 80℃ in dynamic state Instantaneous heat resistance up to 100℃
Color: Grey, Black, other color can be supplied as request. |
| Overall Dimensfon |
| Model |
mm |
H
mm |
GL
mm |
mm |
| M 12 x 1,5 |
3-6,5 |
21 |
8 |
15 |
| M 12 x 1,5 |
2-5 |
21 |
8 |
15 |
| M 12 x 1,5 |
4-8 |
22 |
8 |
19 |
| M 12 x 1,5 |
2-6 |
22 |
8 |
19 |
| M 12 x 1,5 |
5-10 |
25 |
8 |
22 |
| M 20 x 1,5 |
6-12 |
27 |
9 |
24 |
| M 20 x 1,5 |
5-9 |
27 |
9 |
24 |
| M 20 x 1,5 |
10-14 |
28 |
9 |
27 |
| M 25 x 1,5 |
13-18 |
31 |
11 |
33 |
| M 25 x 1,5 |
9-16 |
31 |
11 |
33 |
| M 32 x 1,5 |
18-25 |
39 |
11 |
42 |
| M 32 x 1,5 |
13-20 |
39 |
11 |
42 |
| M 40 x 1,5 |
22-32 |
48 |
13 |
53 |
| M 40 x 1,5 |
20-26 |
48 |
13 |
53 |
| M 50 x 1,5 |
32-38 |
49 |
13 |
60 |
| M 50 x 1,5 |
25-31 |
49 |
13 |
60 |
| M 63 x 1,5 |
37-44 |
49 |
14 |
65/68 |
| M 63 x 1,5 |
29-35 |
49 |
14 |
65/68 |
|
| Dimensions |
 |
|
