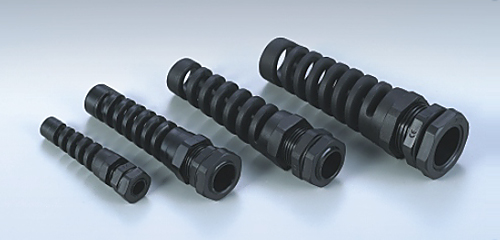

Product Introduction Material: PA (NYLON), UL 94
Hermetic seal: NBR
Working temperature: -40℃ to 100℃ in static state Instantaneous heat resistance up to 120℃,-20℃ to 80℃ in dynamic state Instantaneous heat resistance up to 100℃
Color: Grey, Black, other color can be supplied as request. |
| Overall Dimensfon |
| Model |
mm |
H
mm |
GL
mm |
d
mm |
mm |
| M 12 x 1,5 |
3-6,5 |
54 |
8 |
7 |
15 |
| M 12 x 1,5 |
2-5 |
54 |
8 |
7 |
15 |
| M 16 x 1,5 |
4-8 |
63 |
8 |
8,5 |
19 |
| M 16 x 1,5 |
2-6 |
63 |
8 |
8,5 |
19 |
| M 16 x 1,5 |
5-10 |
78 |
8 |
10,5 |
22 |
| M 16 x 1,5 |
3-7 |
78 |
8 |
10,5 |
22 |
| M 20 x 1,5 |
6-12 |
90 |
9 |
13 |
24 |
| M 20 x 1,5 |
5-9 |
90 |
9 |
13 |
24 |
| M 20 x 1,5 |
10-14 |
100 |
9 |
15,5 |
27 |
| M 20 x 1,5 |
7-12 |
100 |
9 |
15,5 |
27 |
| M 25 x 1,5 |
13-18 |
114 |
11 |
20 |
33 |
| M 25 x 1,5 |
9-16 |
114 |
11 |
20 |
33 | |
| Dimensions |
 |
|
