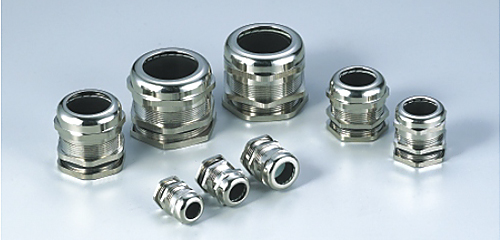

Product Introduction Material: Nickel-plated brass
Fixture pack: PA (NYLON), UL 94
Hermetic seal: NBR
O-Seal ring: NBR
Protection degree: IP68-10 pressure(Rotate position)
Working temperature: -40℃ to 100℃ Instantaneous heat resistance up to 120℃ |
| Overall Dimensfon |
| Model |
mm |
H
mm |
GL
mm |
mm |
| M 12 x 1,5 |
3-6,5 |
19 |
6,5 |
14 |
| M 12 x 1,5 |
2-5 |
19 |
6,5 |
14 |
| M 16 x 1,5 |
4-8 |
22 |
6 |
17/19 |
| M 16 x 1,5 |
2-6 |
22 |
6 |
17/19 |
| M 16 x 1,5 |
5-10 |
23 |
6 |
20 |
| M 20 x 1,5 |
6-12 |
23 |
6 |
22 |
| M 20 x 1,5 |
5-9 |
24 |
6 |
22 |
| M 20 x 1,5 |
10-14 |
26 |
6 |
24 |
| M 25 x 1,5 |
13-18 |
26 |
7 |
30 |
| M 25 x 1,5 |
9-16 |
31 |
7 |
30 |
| M 32 x 1,5 |
18-25 |
31 |
8 |
40 |
| M 32 x 1,5 |
13-20 |
31 |
8 |
40 |
| M 40 x 1,5 |
22-32 |
37 |
8 |
50 |
| M 40 x 1,5 |
20-26 |
37 |
8 |
50 |
| M 50 x 1,5 |
32-38 |
37 |
9 |
57 |
| M 50 x 1,5 |
25-31 |
37 |
9 |
57 |
| M 63 x 1,5 |
37-44 |
38 |
10 |
64/68 |
| M 63 x 1,5 |
29-35 |
38 |
10 |
64/68 |
|
| Dimensions |
 |
|
