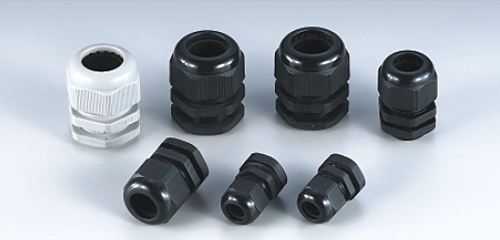

Product Introduction Material: PA (NYLON), UL 94
Hermetic seal: NBR
Working temperature: -40℃ to 100℃ in static state Instantaneous heat resistance up to 120℃,-20℃ to 80℃ in dynamic state Instantaneous heat resistance up to 100℃
Color: Grey, Black, other color can be supplied as request. |
| Overall Dimensfon |
| Model |
mm |
H
mm |
GL
mm |
mm |
| 3/8" NPT |
4-8 |
22 |
15 |
22/19 |
| 3/8" NPT |
2-6 |
22 |
15 |
22/19 |
| 1/2" NPT |
6-12 |
27 |
13 |
24 |
| 1/2" NPT |
5-9 |
27 |
13 |
24 |
| 1/2" NPT |
10-14 |
28 |
13 |
27 |
| 1/2" NPT |
7-12 |
28 |
13 |
27 |
| 3/4" NPT |
13-18 |
31 |
14 |
33 |
| 3/4" NPT |
9-16 |
31 |
14 |
33 |
| 1" NPT |
18-25 |
39 |
19 |
42 |
| 1" NPT |
13-20 |
39 |
19 |
42 |
| 1 1/4" NPT |
18-25 |
39 |
16 |
46/42 |
| 1 1/4" NPT |
13-20 |
39 |
16 |
46/42 |
| 1 1/2" NPT |
22-32 |
48 |
20 |
53 |
| 1 1/2" NPT |
20-26 |
48 |
20 |
53 |
|
| Dimensions |
 |
|
