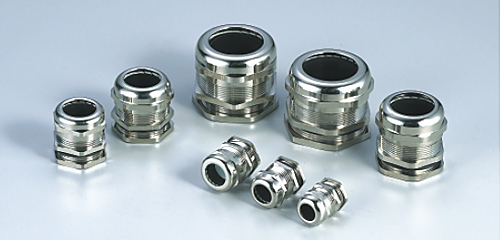

Product Introduction Material: Nickel-plated brass
Fixture pack: PA (NYLON), UL 94
Hermetic seal: NBR
O-Seal ring: NBR
Protection degree: IP68-10 pressure(Rotate position)
Workin temperature: -40℃ to 100℃ Instantaneous heat resistance up to 120℃，Other screw thread type (G, PF, BSP, PS, NPT)
Note: can be supplied as request |
| Overall Dimensfon |
| Model |
mm |
H
mm |
GL
mm |
mm |
| 3/8" NPT |
4-8 |
21 |
15 |
17/19 |
| 3/8" NPT |
2-6 |
21 |
15 |
17/19 |
| 1/2" NPT |
6-12 |
24 |
13 |
22/24 |
| 1/2" NPT |
5-9 |
24 |
13 |
22/24 |
| 3/4" NPT |
13-18 |
25 |
13 |
30 |
| 3/4" NPT |
9-16 |
25 |
13 |
30 |
| 1" NPT |
18-25 |
29 |
13 |
40 |
| 1" NPT |
13-20 |
29 |
13 |
40 |
|
| Dimensions |
 |
|
