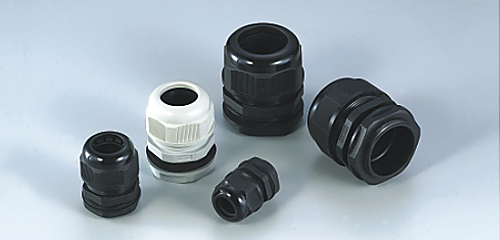

Product Introduction Material: PA (NYLON), UL 94
Hermetic seal: NBR
Working temperature: -40℃ to 100℃ in static state Instantaneous heat resistance up to 120℃,-20℃ to 80℃ in dynamic state Instantaneous heat resistance up to 100℃
Color: Grey, Black, other color can be supplied as request. |

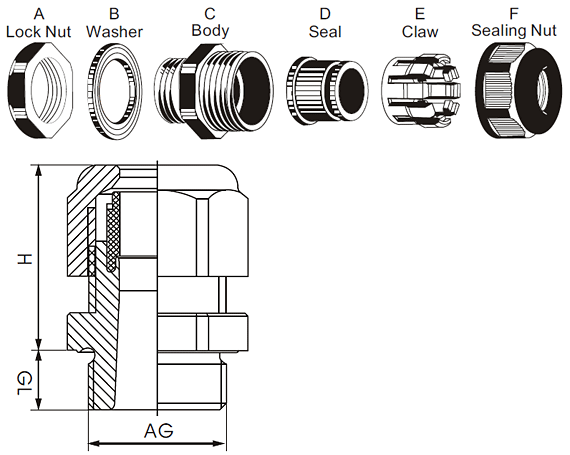

| Overall Dimensfon |
| Model |
mm |
H
mm |
GL
mm |
mm |
| MG12 |
4.5-8 |
12 |
9 |
17/19 |
| MG12 |
3-5.3 |
12 |
9 |
17/19 |
| MG16 |
6-10 |
16 |
15 |
22 |
| MG16 |
4-7 |
16 |
15 |
22 |
| MG20 |
9-14 |
20 |
15 |
26/27 |
| MG20 |
6-11 |
20 |
15 |
26/27 |
| MG25 |
13-18 |
25 |
15 |
32/33 |
| MG25 |
10-16 |
25 |
15 |
32/33 |
| MG32 |
18-25 |
32 |
15 |
41 |
| MG32 |
15-22 |
32 |
15 |
41 |
| MG40 |
24-30 |
40 |
20 |
50 |
| MG40 |
20-25 |
40 |
20 |
50 |
| MG50 |
30-40 |
50 |
23 |
60/62 |
| MG50 |
26-32 |
50 |
23 |
60/62 |
| MG63 |
40-50 |
63 |
24 |
73/75 |
| MG63 |
38-46 |
63 |
24 |
73/75 |
|
| Dimensions |
 |
|
