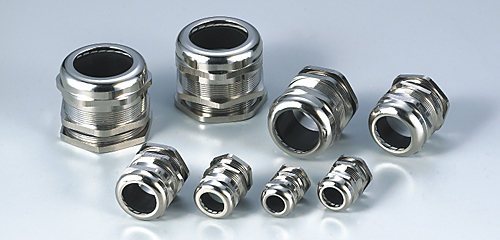

Product Introduction Material: Nickel-plated brass
Fixture pack: PA (NYLON), UL 94
Hermetic seal: NBR
Protection degree: IP68-10 pressure (Rotate position)
Working temperature: -40℃ to 100℃ Instantaneous heat resistance up to 120℃ |
| Overall Dimensfon |
| Model |
mm |
H
mm |
GL
mm |
mm |
| PG 7 |
3-6,5 |
19 |
10 |
14 |
| PG 7 |
2-5 |
19 |
10 |
14 |
| PG 9 |
4-8 |
21 |
10 |
17 |
| PG 9 |
2-6 |
21 |
10 |
17 |
| PG 11 |
5-10 |
22 |
10 |
20 |
| PG 11 |
3-7 |
22 |
10 |
20 |
| PG 13,5 |
6-12 |
24 |
10 |
22 |
| PG 13,5 |
5-9 |
24 |
10 |
22 |
| PG 16 |
10-14 |
23 |
10 |
24 |
| PG 16 |
7-12 |
23 |
10 |
24 |
| PG 21 |
13-18 |
24 |
12 |
30 |
| PG 21 |
9-16 |
24 |
12 |
30 |
| PG 29 |
18-25 |
29 |
12 |
40 |
| PG 29 |
13-20 |
29 |
12 |
40 |
| PG 36 |
22-32 |
35 |
12 |
50 |
| PG 36 |
20-26 |
35 |
15 |
50 |
| PG 42 |
32-38 |
37 |
15 |
57 |
| PG 42 |
25-31 |
37 |
15 |
57 |
| PG 48 |
37-44 |
38 |
15 |
64 |
| PG 48 |
29-35 |
38 |
15 |
64 |
|
| Dimensions |
 |
|
